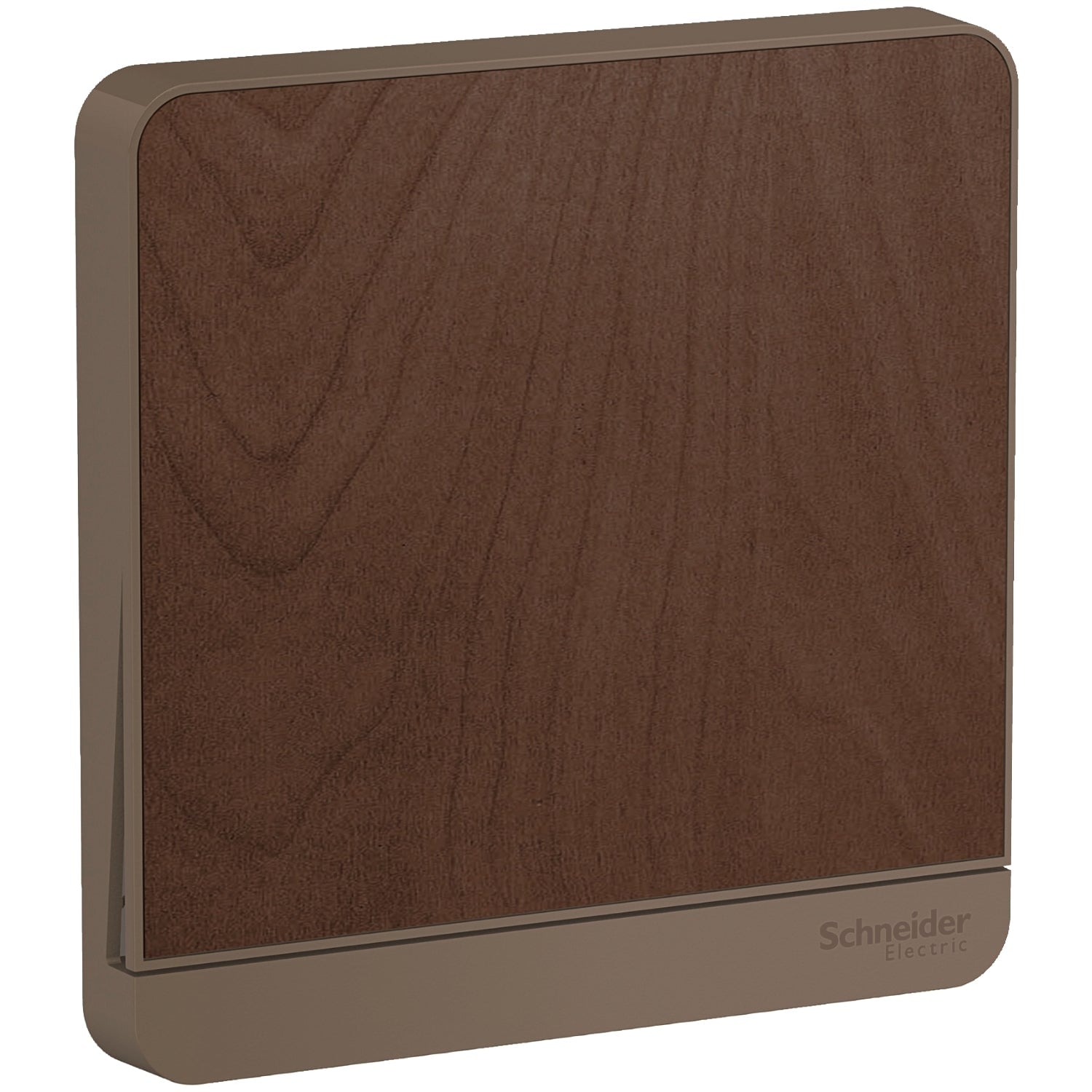

| product or component type | Switch |
|---|---|
| device application | Control |
| load type | Resistive Incandescent lamp Fluorescent lamp Inductive |
| colour tint | Wood |
| device presentation | Complete product |
|---|---|
| rated current | 16 AX at 250 V AC 50/60 Hz |
| switch function | 1-pole 2-way |
| number of gangs | 1 gang |
| number of rocker | 1 |
| clamping connection capacity | 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) 4 x 1.5 mm² for solid cable(s) 4 x 1.5 mm² for stranded cable(s) |
| connections - terminals | Brass terminal |
| local signalling | Off: LED indicator, LED |
| material | Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly Polycarbonate: frame Polycarbonate + GF 20 %: actuator |
| device mounting | Surface Flush |
| width | 86 mm |
| height | 86 mm |
| depth | 34.2 mm |
| embedding depth | 24.5 mm |
| IP degree of protection | IP20 |
|---|---|
| maximum ambient air temperature for operation | 35 °C |
| operating altitude | 2000 m |
| relative humidity | 0…95 % |
| environmental characteristic | UV resistant |
| standards | GB 16915.1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 81 g |
| Package 1 Height | 3.4 cm |
| Package 1 width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 887 g |
| Package 2 Height | 9.5 cm |
| Package 2 width | 19 cm |
| Package 2 Length | 19.5 cm |
